Mercedes-Benz Sprinter Van Wheelbase Guide
From hard work to recreational activities and everything in between, the Mercedes-Benz Sprinter Van lineup has something for virtually every type of buyer. In addition to remarkable performance capabilities and technological innovations that enhance each mile you spend behind the wheel, another standout strength of the Sprinter lineup is its flexibility. This outstanding flexibility is made possible by the various wheelbase lengths of the Mercedes-Benz Sprinter, allowing you to adapt your van to suit the needs of your business or lifestyle. For additional information about Sprinter wheelbase length options, check out this handy guide assembled by our team at the Mercedes-Benz Van Center Easton. We’re standing by to help you choose the right Sprinter wheelbase length for your specific needs!
Sprinter Wheelbase Options: Quick Answer
Mercedes-Benz Sprinter Cargo Vans are available with a 144-inch wheelbase, a 170-inch wheelbase, or a 170-inch extended configuration. The 144-inch Sprinter is the most maneuverable choice for urban routes and limited parking, the regular 170-inch model provides substantially more cargo length, and the 170-inch extended body delivers the greatest maximum cargo volume and usable floor length.
✓
Best for Maneuverability
The 144-inch wheelbase has the shortest overall length and a smaller turning diameter.
✓
Balanced Cargo Choice
The regular 170-inch configuration balances substantial cargo space with less rear overhang than the extended body.
✓
Maximum Cargo Space
The 170-inch extended configuration provides up to 533 cubic feet of cargo volume in representative 2500 Cargo Van form.
Which Sprinter Wheelbase Is Right for You?
Start with the environment in which you drive, the usable cargo-floor length you need, and the amount of equipment or upfitting your business requires.
144-Inch Wheelbase
Best for: Urban service routes, contractors, mobile technicians, smaller upfits, and buyers who value maneuverability.
- 234-inch overall length
- 45-foot turning diameter
- Standard- or high-roof availability
- Up to 374 cubic feet in representative 2500 high-roof form
- Approximately 133 inches of usable cargo-floor length
170-Inch Wheelbase
Best for: Delivery routes, trade upfits, shelving systems, larger equipment, mobile businesses, and mixed urban/highway use.
- 274-inch overall length
- 52-foot turning diameter
- High-roof configuration
- Up to 488 cubic feet in representative 2500 form
- Approximately 174 inches of usable cargo-floor length
170-Inch Extended
Best for: Maximum-volume deliveries, long shelving runs, bulky cargo, advanced upfits, conversion projects, and high-capacity operations.
- 290-inch overall length
- 52-foot turning diameter
- High-roof configuration
- Up to 533 cubic feet in representative 2500 form
- Approximately 189 inches of usable cargo-floor length
How Should You Choose a Sprinter Wheelbase?
From staying productive to staying profitable, choosing the right wheelbase length for your Mercedes-Benz Sprinter Van can make a tremendous difference on a day-to-day basis. Taking the time to consider how you’ll use your van, the environment in which you drive it, the dimensions of the cargo you carry, and the scale of your operation are essential starting points.
How Many Pallets Can a Sprinter Hold?
- 144-inch wheelbase: Up to approximately 2 standard pallets
- 170-inch wheelbase: Up to approximately 3 standard pallets
- 170-inch extended configuration: Up to approximately 4 standard pallets
Actual pallet capacity depends on pallet dimensions, loading direction, cargo weight, wheel-well clearance, partition placement, shelving, and other upfit equipment. Confirm the intended load before ordering a van.
Sprinter Wheelbase Lengths and Dimensions Compared
The figures below use representative 2026 Sprinter 2500 rear-wheel-drive Cargo Van configurations. Dimensions may differ for AWD, dual-rear-wheel, higher-GVWR, passenger, crew, and other configurations.
| Measurement | 144-Inch Standard Roof |
144-Inch High Roof |
170-Inch High Roof |
170-Inch Extended High Roof |
|---|---|---|---|---|
| Wheelbase | 144 inches | 144 inches | 170 inches | 170 inches |
| Overall Length | 234 inches | 234 inches | 274 inches | 290 inches |
| Overall Height | 100 inches | 107 inches | 107 inches | 107 inches |
| Width With Mirrors | 92 inches | 92 inches | 92 inches | 92 inches |
| Interior Standing Height | 68 inches | 79 inches | 79 inches | 79 inches |
| Maximum Cargo-Floor Length | Approximately 133 inches | Approximately 133 inches | Approximately 174 inches | Approximately 189 inches |
| Cargo Volume | 319 cubic feet | 374 cubic feet | 488 cubic feet | 533 cubic feet |
| Turning Diameter | Approximately 45 feet | Approximately 45 feet | Approximately 52 feet | Approximately 52 feet |
| Approximate Pallet Capacity | Up to 2 | Up to 2 | Up to 3 | Up to 4 |
| Primary Strength | Lowest roof and compact footprint | Compact footprint with standing room | Cargo capacity and upfit balance | Maximum usable cargo length and volume |
What Changes When You Select a Longer Wheelbase?
Cargo Length
Longer bodies provide more uninterrupted floor space for shelving, equipment, packages, furniture, or conversion layouts.
Turning Space
The 170-inch models require more room for tight turns, loading areas, parking lots, and narrow urban streets.
Upfit Potential
Additional floor length creates more flexibility for cabinets, workbenches, tanks, refrigeration, passenger amenities, or specialty equipment.
Load Distribution
Cargo length does not replace payload planning. Weight must remain within axle, GVWR, payload, and load-distribution limits.

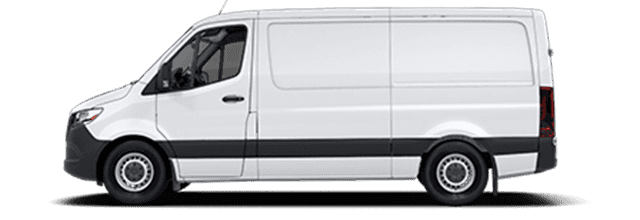

Sprinter 144-Inch Wheelbase
Roof availability: Standard or high roof
144-Inch Advantages
- More maneuverable in cities and congested job sites
- Shortest overall Sprinter Cargo Van body
- Available with standard- or high-roof configurations
- Easier to park and position in loading areas
- Strong starting point for compact trade and service upfits
While it’s the default wheelbase choice for the Sprinter, the 144-inch wheelbase offers plenty of advantages right out of the gate. Available with your choice of both standard- and high-roof options, it offers the most compact footprint of any Sprinter wheelbase. If you’re operating in an urban area where space is limited, the 144-inch wheelbase will prove especially useful thanks to its superior maneuverability compared with the longer options.
The 144-inch configuration is a strong fit for electricians, plumbers, HVAC technicians, mobile repair services, delivery operators, contractors, and recreational buyers who need useful cargo space without committing to the longest body.

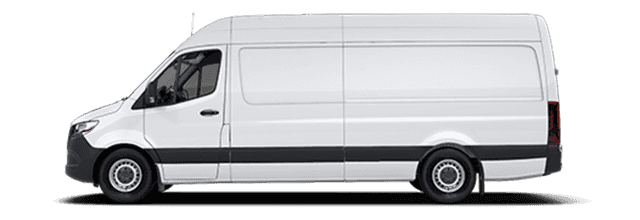

Sprinter 170-Inch Wheelbase
Roof availability: High roof
170-Inch Advantages
- Substantially greater cargo-floor length
- Up to 488 cubic feet in representative 2500 form
- More space for shelving, bins, racks, and workstations
- Useful balance between capacity and rear overhang
- Strong platform for delivery, trade, fleet, and mobile-business upfits
When you need increased capability and versatility, the regular 170-inch wheelbase of the Mercedes-Benz Sprinter Van is an outstanding choice. Its additional wheelbase and body length create much more usable cargo-floor space than the 144-inch model, making it easier to organize long shelving runs, equipment, packages, tools, and specialized upfit components.
Compared with the extended body, the regular 170-inch configuration provides generous cargo capacity with less rear overhang. This makes it a compelling middle ground for businesses that need serious working space without selecting the longest available Sprinter body.
Sprinter 170-Inch Extended Configuration
Roof availability: High roof
170-Inch Extended Advantages
- Maximum Sprinter Cargo Van body length
- Up to 533 cubic feet in representative 2500 form
- Approximately 189 inches of cargo-floor length
- More room for bulky cargo and advanced conversions
- Maximum flexibility for high-volume and specialty operations
The 170-inch extended model uses the same 170-inch axle spacing as the regular long-wheelbase Sprinter but adds body length behind the rear axle. That longer rear section increases overall length to approximately 290 inches and provides the greatest usable cargo-floor length and maximum volume in the Sprinter Cargo Van range.
This configuration is well suited to high-volume delivery, furniture and equipment transport, extensive trade upfits, mobile workshops, recreation conversions, luxury upfits, and other applications where every additional inch of interior room matters. Buyers should also account for rear overhang, parking length, driveway clearance, load distribution, and departure-angle considerations.
Standard Roof vs. High Roof Sprinter
Wheelbase controls the distance between the axles, while roof height determines vertical cargo room and standing clearance.
Standard Roof
Available with the 144-inch wheelbase.
- Approximately 100 inches of exterior height in representative 2500 form
- Approximately 68 inches of interior standing height
- Better fit for some lower-clearance environments
- Useful for buyers who do not need full standing-room cargo height
High Roof
Available across 144-inch, 170-inch, and 170-inch extended Cargo Van configurations.
- Approximately 107 inches of exterior height in representative RWD 2500 form
- Approximately 79 inches of interior standing height
- More room for tall shelving, equipment, and interior work
- Better suited to conversions requiring increased vertical space
Best Sprinter Wheelbase by Business Type
These are general starting points. Payload, equipment dimensions, route conditions, and upfit weight should determine the final configuration.
Urban Trades
Electricians, HVAC technicians, plumbers, locksmiths, and service teams operating in tighter areas may favor the shorter body.
Starting point: 144-inch
Delivery Routes
Operators moving packages or products may benefit from the regular 170-inch body’s balance of capacity and maneuverability.
Starting point: 170-inch
Mobile Businesses
Grooming, workshops, retail, medical, food-service, and specialty mobile operations may need a 170-inch or extended layout.
Starting point: 170 or extended
High-Volume Cargo
Bulky freight, furniture, long equipment, conversion layouts, or maximum-volume deliveries may justify the longest body.
Starting point: 170 extended
Sprinter Wheelbase Buying Checklist
- Measure your longest cargo: Determine the actual usable floor length and door-opening dimensions required.
- Calculate completed upfit weight: Shelving, tanks, tools, partitions, refrigeration, batteries, and accessories consume payload.
- Review daily routes: Consider parking, alleys, loading docks, drive-through clearances, garages, and turning space.
- Choose the correct roof: Decide whether standing room and tall equipment justify a high-roof configuration.
- Plan cargo access: Confirm side-door, rear-door, pallet, shelving, and loading-equipment requirements.
- Check drivetrain availability: AWD availability and vehicle height can vary by model and configuration.
- Allow room for growth: Consider whether the business may need more equipment, cargo, staff, or capability later.
Choose a Sprinter Wheelbase for Your Columbus-Area Business
Businesses operating throughout Columbus and Central Ohio may encounter downtown routes, suburban service calls, loading docks, interstate travel, changing weather, and equipment-heavy job sites. Mercedes-Benz Van Center Easton can help compare wheelbase length, roof height, cargo-floor dimensions, payload, towing, drivetrain, and upfit requirements before you select a van.
Browse new Sprinter inventory, review current Sprinter offers, or use the related research guides below to continue narrowing your configuration.
Continue Your Sprinter Research
Compare capacity, towing, upfitting, ownership, and competing vans before choosing the final configuration.
Mercedes-Benz Sprinter Wheelbase FAQs
What wheelbase lengths are available for the Mercedes-Benz Sprinter?
Sprinter Cargo Van configurations include a 144-inch wheelbase, a 170-inch wheelbase, and a 170-inch extended body configuration. Model, roof, drivetrain, and GVWR availability can vary.
What is the difference between a 170-inch Sprinter and a 170-inch extended Sprinter?
Both use a 170-inch wheelbase, but the extended configuration adds body length behind the rear axle. Representative overall length increases from approximately 274 inches to 290 inches, while maximum cargo-floor length increases from approximately 174 inches to 189 inches.
Which Sprinter wheelbase is best for city driving?
The 144-inch wheelbase is generally the best starting point for city driving because it has the shortest overall body and an approximately 45-foot turning diameter in representative Cargo Van form.
Which Sprinter has the most cargo space?
The 170-inch extended high-roof Cargo Van provides the greatest maximum cargo volume. A representative 2500 rear-wheel-drive configuration offers up to approximately 533 cubic feet.
Can you stand inside a Mercedes-Benz Sprinter?
A representative high-roof Sprinter Cargo Van offers approximately 79 inches of interior standing height. The standard-roof configuration provides approximately 68 inches.
How many pallets can a Sprinter Van hold?
As a general planning estimate, a 144-inch Sprinter may hold up to two standard pallets, a regular 170-inch model may hold up to three, and a 170-inch extended configuration may hold up to four. Actual capacity depends on pallet dimensions, loading direction, cargo weight, wheel wells, partitions, and upfitting.
Is a high roof available with the 144-inch Sprinter?
Yes. The 144-inch Sprinter Cargo Van is available in standard- and high-roof configurations, allowing buyers to retain the shorter body while gaining more vertical cargo space.
What is the turning diameter of a Sprinter Van?
Representative 144-inch Cargo Van configurations have an approximately 45-foot turning diameter. Representative 170-inch and 170-inch extended configurations have an approximately 52-foot turning diameter.
Does Sprinter AWD change the vehicle dimensions?
AWD and higher-GVWR configurations can have different exterior height, width, payload, towing, and weight specifications. Verify the measurements of the exact vehicle being considered.
Can Mercedes-Benz Van Center Easton help me choose a wheelbase?
Yes. Mercedes-Benz Van Center Easton can help compare wheelbases, roof heights, cargo dimensions, payload, towing, drivetrain availability, inventory, and upfit requirements for a business or personal application.
*Specifications shown are representative 2026 Mercedes-Benz Sprinter Cargo Van figures and may vary based on model, roof height, drivetrain, GVWR, dual-rear-wheel configuration, equipment, options, upfit, and manufacturer updates. Cargo volume, floor length, payload, towing, pallet capacity, turning diameter, exterior height, and other measurements should be verified for the exact vehicle before purchase or upfitting.
