Mercedes-Benz Sprinter Tow Hitch Options
Towing is a fundamental aspect of choosing the right commercial van for your trade, business, or occupation. Fortunately, the Mercedes-Benz Sprinter Van lineup continues to set the standard for towing strength and confidence for the entire commercial sector. Another aspect involved with towing safely and smartly is choosing the right tow hitch for your Sprinter Van. To provide you with some additional assistance on this subject, our team at the Mercedes-Benz Van Center Easton has created this helpful Sprinter tow hitch guide that covers the various tow hitch options for the Sprinter Van model range. Let’s take a closer look!
Sprinter Tow Hitch Options: Quick Answer
Mercedes-Benz Sprinter hitch options include the Q24 trailer hitch with up to 5,000 pounds of towing capacity and 500 pounds of maximum tongue weight, the QA2 trailer hitch with up to 7,500 pounds of towing capacity and 750 pounds of maximum tongue weight, and the QA9 half-side rear step that can be paired with compatible Q24 or QA2 hitch equipment. The correct option depends on the exact Sprinter model, body length, GVWR, trailer weight, tongue weight, payload, and factory equipment.
✓
5,000-Pound Option
Q24 supports up to 5,000 pounds of trailer weight and 500 pounds of maximum tongue weight.
✓
7,500-Pound Option
QA2 supports up to 7,500 pounds of trailer weight and 750 pounds of maximum tongue weight on compatible models.
✓
Factory Integration
Available wiring, trailer connection equipment, LED-light support, and rear-step integration help create a complete towing setup.
Which Mercedes-Benz Sprinter Hitch Do You Need?
Begin with the maximum loaded trailer weight, tongue weight, Sprinter model, body configuration, and intended towing frequency.
Choose Q24 When:
- The loaded trailer weighs no more than 5,000 pounds
- Tongue weight remains at or below 500 pounds
- You need compatibility with an extended Sprinter body
- You are towing moderate equipment or utility trailers
- You want factory-integrated trailer wiring capability
Choose QA2 When:
- The loaded trailer can exceed 5,000 pounds
- You need up to 7,500 pounds of rated towing capacity
- Tongue weight remains at or below 750 pounds
- You are selecting a compatible 3500XD or 4500 model
- Your Sprinter is not an extended-body configuration
Add QA9 When:
- You want easier entry and exit through the rear doors
- Your van uses compatible Q24 or QA2 equipment
- A compact right-side step fits the intended operation
- You want a welded anti-slip tread surface
- You need hitch access without a full-width rear step
Sprinter Tow Hitch Options Compared
The hitch rating is only one part of the calculation. The exact vehicle, trailer, load, tongue weight, payload, and equipment must all remain within their individual limits.
| Option | Maximum Towing | Maximum Tongue Weight | Availability | Primary Purpose |
|---|---|---|---|---|
| Q24 Trailer Hitch | 5,000 pounds | 500 pounds | All Sprinter Vans, including extended configurations | Moderate commercial and utility towing |
| QA2 Trailer Hitch | 7,500 pounds | 750 pounds | 3500XD and 4500 models, excluding extended configurations | Higher-capacity commercial towing |
| QA9 Half-Side Rear Step | Not a separate towing rating | Not applicable | Used with compatible Q24 or QA2 equipment | Improved rear cargo-area access |
| E40 Trailer Electrical Equipment | Does not increase towing capacity | Not applicable | Paired with applicable towing equipment | Seven-pole trailer connection, lighting, and accessory power |
Sprinter Towing Terms Explained
Understanding the ratings is essential before selecting a hitch or connecting a trailer.
Towing Capacity
The maximum trailer weight the exact Sprinter configuration is rated to pull when properly equipped. The applicable rating may be lower than the hitch’s maximum rating.
Tongue Weight
The downward force the trailer places on the hitch. Tongue weight also contributes to the weight carried by the van and must be included in payload planning.
GVWR and Payload
GVWR limits the total weight of the loaded van. Passengers, cargo, accessories, upfit equipment, hitch equipment, and tongue weight all affect available payload.
GCWR
GCWR limits the combined loaded weight of the van and trailer. Staying below the hitch rating alone does not guarantee that the complete combination is within its limits.

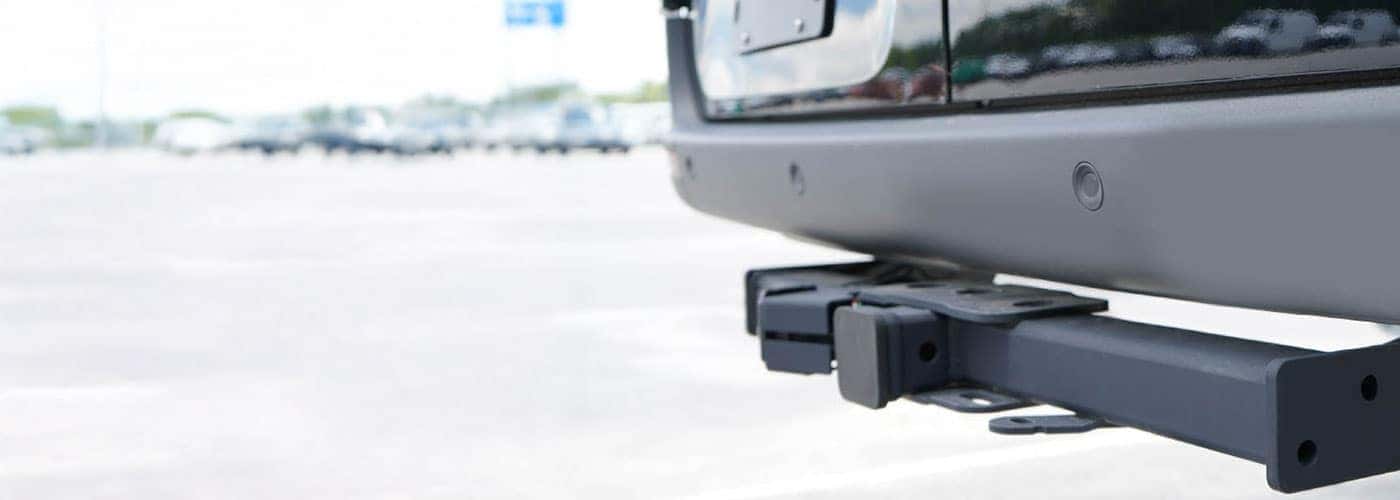

Trailer Hitch Option Q24
Q24 Ratings and Availability
- Maximum towing capacity: 5,000 pounds
- Maximum tongue weight: 500 pounds
- Availability: All Sprinter Vans, including extended configurations
- Best suited for: Moderate commercial, utility, equipment, and recreational trailers
The trailer cross-member code Q24 has a towing capacity of 5,000 pounds and a maximum tongue weight of 500 pounds. A trailer plug socket with seven poles and a trailer connection unit, which also supports LED lights on a trailer, is included with code E40. A permanent power supply is available on trailer socket pin 4 and allows a connection to compatible accessories up to a maximum of 240W.
Because Q24 is available across the Sprinter range, including extended configurations, it is the broadest factory hitch option described in this guide. The exact van must still be rated for the intended trailer, load, and tongue weight.
Trailer Hitch Option QA2
QA2 Ratings and Availability
- Maximum towing capacity: 7,500 pounds
- Maximum tongue weight: 750 pounds
- Availability: Compatible 3500XD and 4500 models
- Body limitation: Excludes extended configurations
- Best suited for: Heavier commercial equipment and higher-capacity trailers
The trailer cross-member code QA2 has a towing capacity of 7,500 pounds and a maximum tongue weight of 750 pounds. It is intended for compatible higher-capacity Sprinter configurations where the additional trailer rating is supported by the vehicle’s GVWR, GCWR, axles, frame, equipment, and model specification.
Selecting a Sprinter capable of 7,500-pound towing requires more than adding the hitch. Confirm that the exact 3500XD or 4500 vehicle is rated for the intended trailer and that the completed van, upfit, passengers, cargo, tongue weight, and trailer remain within every applicable rating.
Half-Side Rear Step with Trailer Hitch QA9
Step dimensions: Approximately 7.48 by 20.47 inches
In conjunction with compatible trailer hitch Q24 or QA2 equipment, it is possible to order a black-painted step consisting of a tubular steel frame with a welded anti-slip tread surface. The step is bolted onto the right side of the trailer coupling and allows easier entry and exit at the rear.
QA9 does not create a separate towing-capacity rating. Its purpose is to improve access to the rear cargo area while retaining the compatible hitch arrangement.
How to Choose the Correct Sprinter Tow Hitch
Use the following process before ordering equipment or connecting a trailer.
Identify the Exact Sprinter
Confirm the model, GVWR, wheelbase, body length, drivetrain, equipment codes, rear axle, hitch provisions, and ratings for the exact vehicle.
Determine Loaded Trailer Weight
Include the trailer itself, equipment, cargo, fluids, batteries, accessories, spare tires, tools, and every item carried on the trailer.
Calculate Tongue Weight
Measure the actual downward load at the hitch and include it when calculating the payload carried by the Sprinter.
Check Payload and Axle Limits
Passengers, cargo, upfit equipment, accessories, the hitch, and tongue weight cannot cause the van or either axle to exceed its rating.
Confirm Electrical Equipment
Verify trailer lighting, seven-pole connection requirements, trailer-brake equipment, accessory power, and compatibility with the intended trailer.
Verify the Complete Setup
The lowest-rated component or vehicle limit governs the setup. A higher-rated aftermarket hitch cannot increase the Sprinter’s factory towing rating.
Sprinter Towing Safety Checklist
- Confirm the exact van’s towing, GCWR, GVWR, axle, and tongue-weight ratings
- Measure the trailer’s fully loaded weight rather than relying on empty weight
- Keep tongue weight within the hitch and vehicle limit
- Include tongue weight when calculating available Sprinter payload
- Confirm that the hitch, receiver, ball mount, ball, and fasteners are correctly rated
- Inspect hitch mounting points and components before towing
- Connect and test trailer lighting and required braking equipment
- Attach safety chains or cables correctly
- Verify tire pressure and load ratings on the van and trailer
- Distribute trailer cargo securely and avoid excessive rear loading
- Allow additional stopping distance and cornering room
- Recheck the hitch, load, wiring, tires, and coupler during long trips
Important: Follow the owner’s manual and requirements for the exact Sprinter and trailer. Trailer-brake, licensing, safety-equipment, and operating requirements may differ based on trailer type, weight, and jurisdiction.
Common Sprinter Towing Mistakes to Avoid
Most towing problems begin with an incomplete weight calculation or a mismatch between the hitch, van, trailer, and load.
Do This
- Use the loaded trailer weight
- Measure tongue weight
- Check the exact vehicle’s data and equipment
- Include passengers, cargo, and upfit weight
- Match every component to the intended load
- Inspect the setup before departure
- Ask a Sprinter parts or commercial-van specialist when uncertain
Avoid This
- Using the trailer’s empty weight as the final number
- Assuming every Sprinter can tow 7,500 pounds
- Ignoring tongue weight and available payload
- Installing a higher-rated hitch and assuming the vehicle rating increased
- Exceeding axle, tire, GVWR, or GCWR limits
- Towing with damaged, loose, or incorrectly installed equipment
- Using wiring or braking equipment that is not compatible with the trailer
Shop Sprinter Tow Hitches and Trailering Equipment in Columbus
Still need additional assistance choosing the right tow hitch or trailer equipment for your Sprinter? Trust the Mercedes-Benz Van Center Easton for your towing-related needs. Our team can help review the exact Sprinter model, factory equipment, body configuration, trailer weight, tongue weight, payload, electrical requirements, and intended use.
We carry OEM-recommended towing parts and aftermarket solutions from established manufacturers. The right solution may include the hitch assembly, receiver equipment, wiring, electrical connection, compatible ball mount, trailer ball, rear step, and other equipment required by the specific application.
Before ordering, provide your vehicle identification number and as much information as possible about the trailer and load. That helps our parts team identify compatible equipment and avoid unnecessary delays.
Get Help Configuring a Sprinter for Towing
Sprinter vans operating throughout Columbus and Central Ohio may tow work equipment, enclosed cargo trailers, utility trailers, landscaping equipment, construction equipment, or recreational loads. The ideal setup depends on the combined weight, route, terrain, payload, trailer dimensions, operating frequency, and exact van configuration.
Use our online parts request, browse new Sprinter inventory, or review the related Sprinter research guides below.
Continue Your Sprinter Research
Compare vehicle dimensions, payload, wheelbases, maintenance, upfitting, and competitive advantages before choosing a towing configuration.
Mercedes-Benz Sprinter Tow Hitch FAQs
What tow hitch options are available for a Mercedes-Benz Sprinter?
The options covered in this guide include the Q24 trailer hitch rated for up to 5,000 pounds, the QA2 trailer hitch rated for up to 7,500 pounds on compatible models, and the QA9 half-side rear step used with compatible Q24 or QA2 equipment.
What is the difference between the Q24 and QA2 Sprinter hitches?
Q24 is rated for up to 5,000 pounds of towing and 500 pounds of tongue weight and is available across the Sprinter range, including extended configurations. QA2 is rated for up to 7,500 pounds and 750 pounds of tongue weight and is available on compatible 3500XD and 4500 models excluding extended configurations.
How much can a Mercedes-Benz Sprinter tow?
Depending on the exact model and equipment, a Sprinter can be rated for up to 5,000 or 7,500 pounds of towing capacity. The hitch, vehicle configuration, GVWR, GCWR, axle ratings, payload, tongue weight, and trailer must all support the intended load.
What is the maximum tongue weight for a Sprinter hitch?
The Q24 option supports up to 500 pounds of maximum tongue weight. The QA2 option supports up to 750 pounds on compatible configurations. Tongue weight also counts against the van’s available payload.
Which Sprinter models can use the QA2 7,500-pound hitch?
QA2 is listed for compatible Sprinter 3500XD and 4500 models, excluding extended configurations. The exact vehicle and factory equipment must be verified before ordering or towing.
Can an extended Sprinter use a trailer hitch?
Yes. Q24 is listed as available for Sprinter Vans including extended configurations and is rated for up to 5,000 pounds of towing and 500 pounds of tongue weight. QA2 excludes extended configurations.
What is the QA9 Sprinter rear step?
QA9 is a black-painted half-side rear step that can be installed with compatible Q24 or QA2 hitch equipment. It measures approximately 7.48 by 20.47 inches and uses a welded anti-slip tread surface to improve rear entry and exit.
Does a Sprinter trailer hitch include electrical wiring?
The E40 equipment described with Q24 includes a seven-pole trailer plug socket and trailer connection unit that supports trailer LED lights. A permanent power supply is available on socket pin 4 for compatible accessories up to 240W.
Can an aftermarket hitch increase a Sprinter’s towing capacity?
No. A higher-rated aftermarket hitch does not increase the towing capacity assigned to the Sprinter itself. The vehicle, hitch, receiver, ball mount, trailer, tires, axles, and every other component must remain within their individual ratings.
Can Mercedes-Benz Van Center Easton help me choose a Sprinter tow hitch?
Yes. Mercedes-Benz Van Center Easton can help review your vehicle identification number, Sprinter configuration, towing rating, trailer weight, tongue weight, payload, wiring requirements, and available OEM-recommended or aftermarket equipment.
*Towing capacity, tongue weight, hitch availability, wiring, rear-step compatibility, payload, GVWR, GCWR, axle ratings, trailer-brake requirements, and equipment vary by model year, model, wheelbase, body length, drivetrain, GVWR, factory configuration, upfit, trailer, and load. The lowest applicable vehicle, hitch, component, tire, axle, or trailer rating governs the setup. Verify all specifications and equipment for the exact vehicle and trailer before purchase, installation, or towing.
